Mangoola Coal Project 2010-2011

Project Summary

  • Client Downer EDI
  • Location Muswellbrook, NSW
Client

Downer EDI

Incidents
Defects
Location

Muswellbrook, NSW

Mangoola Coal is an open cut coal operation in the Wybong area, 20 kilometres west of Muswellbrook. Mangoola coal will produce a range of export and domestic thermal coal .The scope of works encompassed all pre-assembly, erection of structural steel, and installation of mechanical equipment.

Key Milestones

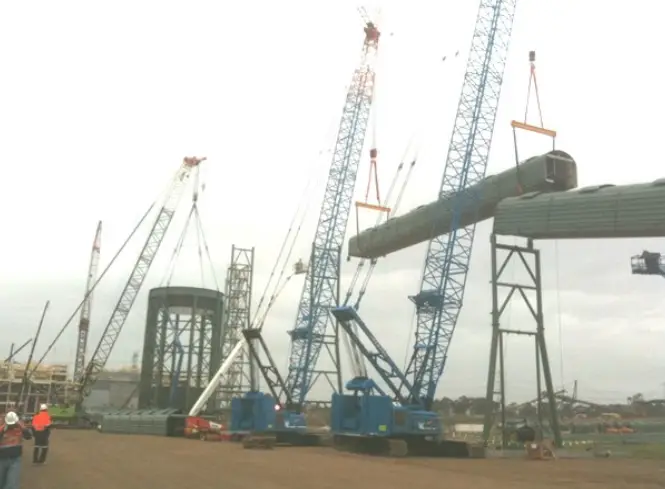

  • Primary sizing station- a 2000t/h chain feeder. ROM bin support structural steelwork. ROM bin stair access tower structural steelwork. Primary sizing station and feed conveyor. Installation of OEM equipment including setup, alignment and pre-commissioning checks. Complete final alignment of the conveyor including idlers and head, tail, bend and GTU pulleys. Installation of conveyor galleries, trestles and take up towers.
  • Secondary sizing station, sizing station feed conveyor, conveyor galleries, trestles, sizing station structural steelwork, secondary sister including feed and discharge chutes, tertiary sizers 1 & 2 including feed and discharge chutes, raw coal sample station, OEM equipment
  • Plant feed system– surge bin support steelwork, surge bin access stairs structural steelwork, vibratory feeder support steelwork grating, vibratory feeders and discharge chutes. CPP module 1&2 feed conveyors. Surge bin feed conveyor, conveyor galleries, trestles

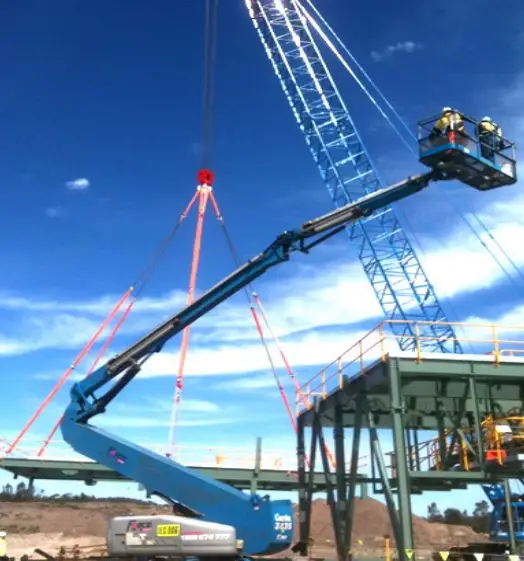

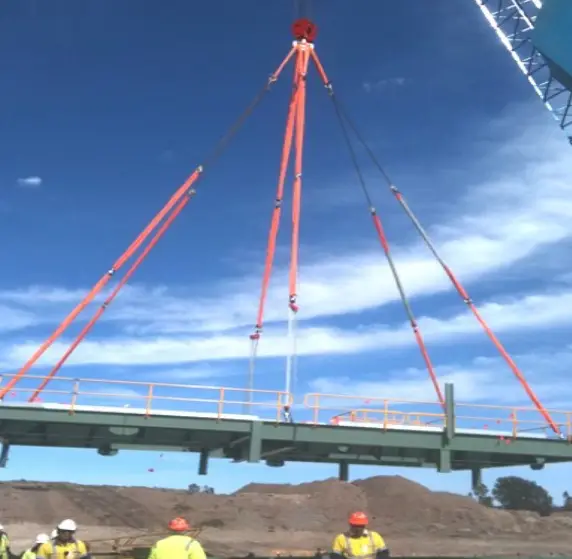

  • Product conveyors– product conveyors steelwork trusses from CPP to stockpile area, sample station/take up area structural steelwork, cross belt samplers, crushers, belt feeders, and rotary sample collectors. Installation of stacker rail, primary and secondary product conveyors.
  • Rejects systems– 700t rejects bin support steelwork, rejects bin access stairs structural steelwork, rejects discharge gate and associated hydraulic power pack.
  • Tunnel and reclaim conveyor-reclaim tunnel ventilation, coal valve support structural steelwork, coal valves including drawdown+ hoppers, exciters and slide gates, and coal valve discharge chutes. Reclaim sample station , conveyor brake station, complete final alignment.
